Guardian Bird1st™

Bird1st Lami DoubleShiny

Add more products here

Glass that performs and protects

As part of Guardian’s approach to bird-friendly glass, Guardian Bird1st™ Lami allows architects and designers greater flexibility in meeting a project’s performance while helping to prevent birds from colliding with glazed facades. Guardian Bird1st Lami is made with Saflex™ Flysafe™ 3D PVB interlayer with embedded shiny silver sequins on both sides, producing subtle twinkles that help deter birds, and giving architects the freedom to create facades that stand out.

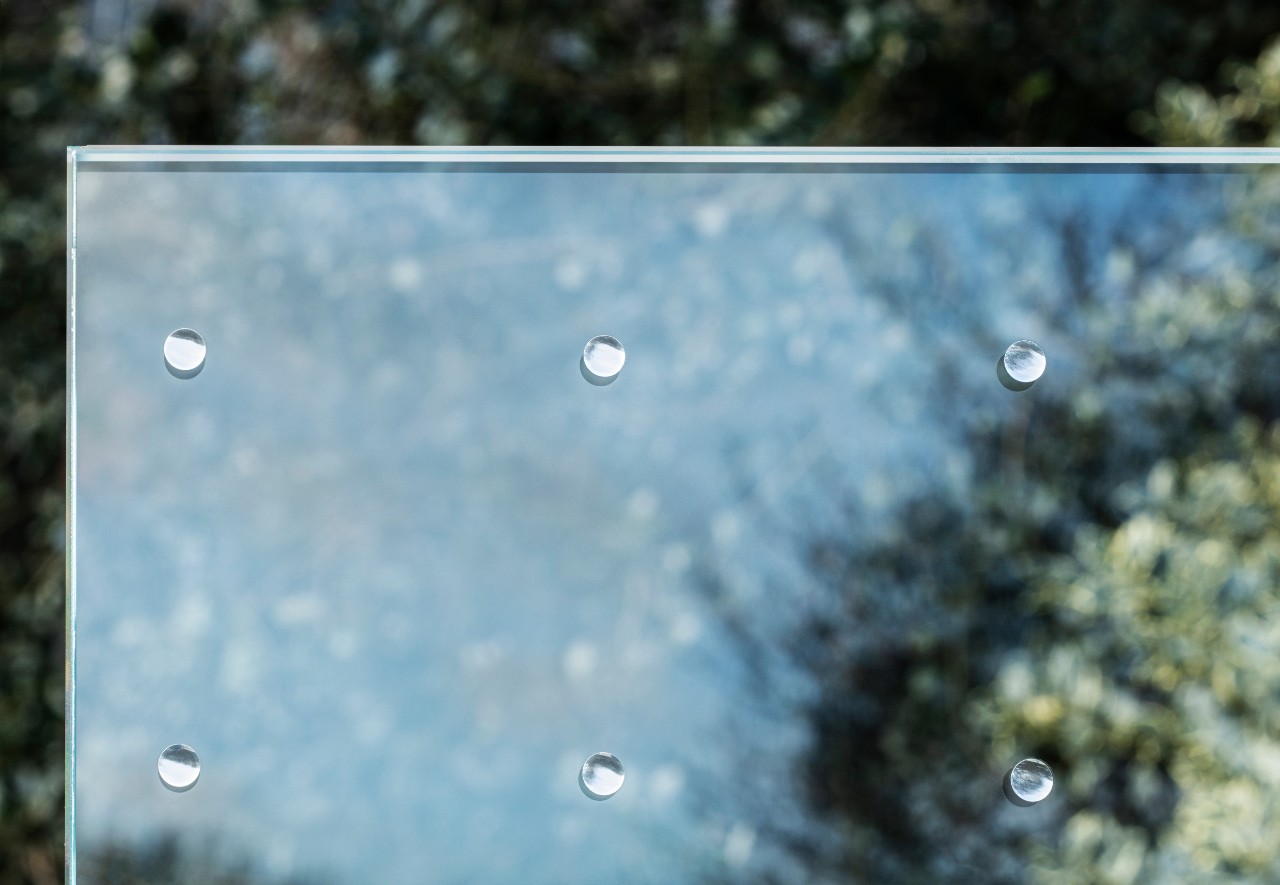

Bird1st Lami - What you see from outside

View from the outside and the inside

The grid pattern consists of rows and columns of discreet 3D sequins that are 9 mm (0.35 in.) in diameter, separated on all sides by 90 mm (3.5 in.) When viewed from outside the building, the sequins subtly sparkle and help birds perceive the glazing as a physical barrier.

Logiform

FlySafe 3D technology tested effectiveness in reducing bird collision (monolithic laminated glass, no coating)

Sequin type
Exterior/interior
Grid Pattern
(mm)
Approaches
(%)
Surface coverage
(%)
Bird1st Lami Shiny silver/black 9/90 9 < 1
Bird1st Lami Matte Matte silver/black 9/90 9 < 1
Bird1st Lami DoubleShiny Shiny silver/shiny silver 9/90 6 < 1

Note: Flight tunnel testing completed at Collision Laboratories represents the percentage of birds that approach the test panel. The % approaches are typically translated into the threat factor.

Product information

Substrates
  • Guardian ExtraClear 3.3.4, 4.4.4, 5.5.4, 6.6.4, 8.8.4
  • Guardian UltraClear 3.3.4, 4.4.4, 5.5.4, 6.6.4, 8.8.4
Applications
  • Windows
  • Balustrades
  • Facades
  • Curtain walls
Manufacturing Options
  • Laminated
Recommended Coating Positions
  • Surface 2 (double IGU)
Maximum Size
  • < 6000x3210mm
Edge Deletion
  • No
Glass Type
  • Bird-friendly glass
  • Laminated
Glass Functions
  • Safety and security
  • Selective visibility
Fabrication Options
  • Must be Laminated
Appearance
  • Neutral
