SunGuard® SuperNeutral™

SN 70/41

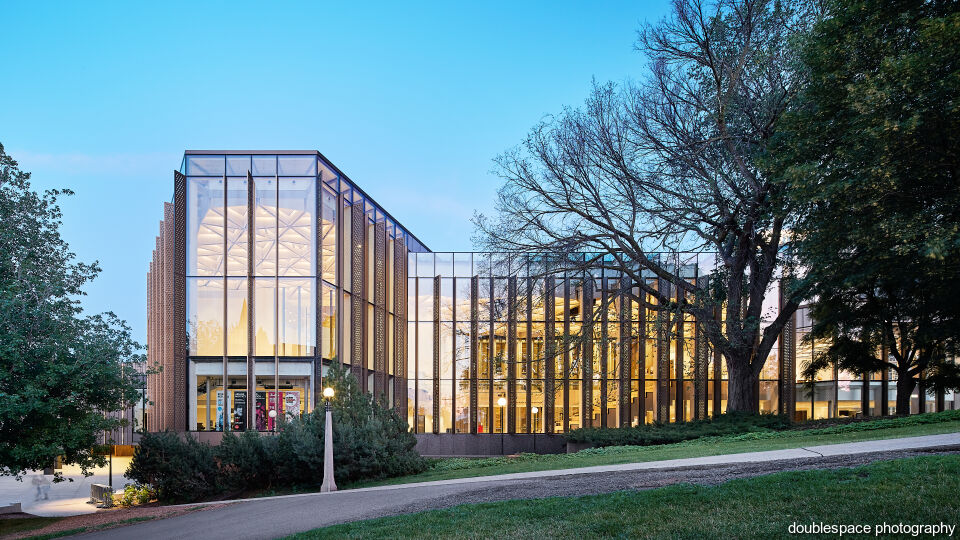

Photo credit: doublespace photography

Neutral color, standout performance

Architects and owners look for glass that minimises the need for artificial light and at the same time offers solar protection. SunGuard® SN 70/41 meets these requirements. This multifunctional coating offers excellent solar protection combined with outstanding thermal insulation.

Excellent selectivity

Combining high solar protection with high light transmission

Uniform colour

Sophisticated neutral reflected and transmitted colour, with available matching spandrel

Can be laminated

Available on laminated and acoustic laminated glass for more security and comfort

Two versions

Heat-treatable (HT) and annealed glass with matching appearance

Product Information

Glass Substrates

  • ExtraClear

Thickness

  • 4 - 12 mm

Applications

  • Facades
  • Windows
  • Doors
  • Curtain Walls
  • Roofs
  • Skylights

Manufacturing Options

  • Laminated
  • Heat Strengthened
  • Annealed
  • HT version with TPF foil for Heat-Treatable applications: Tempered

Available Sizes

  • Maximum Height x Width: 3210 x 6000 mm

Recommended coating positions

  • Double glazed: 2

Edge Deletion

  • Required: Yes

Application type

  • Can be used in: Insulating Glass Unit
Show full specification Show less specification

Visual Appearance

Use the glass visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for colour and performance.

Visual Appearance

Use the glass visualizer to get an introductory understanding of how glass will appear in use. Use the Glass Analytics tools to explore even more options for colour and performance.

* Please see Colour Disclaimer at the bottom of the page for additional information.

Performance Data

Annealed Annealed

  • Visible Light

    1. Transmittance [%] 70
    2. Reflectance outside [%] 11
    3. Reflectance inside [%] 12

  • Solar Energy

    1. Solar Factor (g) [%] 40.95
    2. Direct transmission[%] 39
    3. Reflectance outside [%] 33
    4. Absorption [%] 28
    5. UV [%] 27

  • Thermal Properties

    1. U-Value ∆T=15°K [W/m²·K] 1.12
    2. R-Value ∆T=45°K 2 m/s wind [m²·K/W] 0.67

  • Composition

    1. Composition 6 mm SG / 16 mm / 4 mm - coating on surface #2
    2. Glass 1 & Coating SunGuard SN 70/41 on Guardian ExtraClear
    3. Glass 2 & Coating Guardian ExtraClear
    4. Gap 1 10% Air, 90% Argon
    5. Calculation Standard GOST EN 410-2014

See product specifications

HT version HT version

  • Visible Light

    1. Transmittance [%] 72
    2. Reflectance outside [%] 13
    3. Reflectance inside [%] 15

  • Solar Energy

    1. Solar Factor (g) [%] 41.11
    2. Direct transmission[%] 39
    3. Reflectance outside [%] 35
    4. Absorption [%] 26
    5. UV [%] 34

  • Thermal Properties

    1. U-Value ∆T=15°K [W/m²·K] 1.12
    2. R-Value ∆T=45°K 2 m/s wind [m²·K/W] 0.67

  • Composition

    1. Composition 6 mm SG / 16 mm / 4 mm - coating on surface #2
    2. Glass 1 & Coating SunGuard SN 70/41 HT on Guardian ExtraClear
    3. Glass 2 & Coating Guardian ExtraClear
    4. Gap 1 10% Air, 90% Argon
    5. Calculation Standard GOST EN 410-2014

See product specifications

Disclaimer Disclaimer

Performance Values

This is a schematic picture of how coating works. It helps to keep the heat indoors, reflects solar radiation, and transmits visible daylight. The values of the above-mentioned characteristics are nominal for the central part of an IGU of the configuration, listed above. The values do not take into consideration the window section profile system or the material of the frames. Heat resistance value is representing only the central part of IGU (Rcenter) and given for Moscow climate region (outside air temperature -25 °C, inside air temperature +20 °C). Deviations are possible due to manufacturing and design tolerances. Calculations, terms and conditions are based on GOST national standard EN 410-2014 and GOST EN 673-2016. The calculations have been acquired with the help of software complex, Guardian online configurator.

Color

Displayed colors are intended to represent actual color. Color is a function of light and reflectivity and cannot be accurately portrayed online. Actual glass samples should be used to determine color. Please order a sample and discuss color with your Guardian Architectural Design Manager to ensure you are pleased with your SunGuard selection before ordering glass for your project.
