Guardian Bird1st™ Etch

Bird1st Etch DX22

Add more products here

Glass that performs and protects

In six distinct patterns, Bird1st Etch glass boasts a visible translucence for high style and visual appeal on façades and curtain walls. Bird1st Etch DX22 features non-directional 5mm dots spaced 2" x 2" apart and tested by the American Bird Conservancy for proven effectiveness.

Etch DX22 is available in larger sizes – 102" x 130", 102" x 144", 102" x 204" and 65" x 204” – expanding your aesthetic range.

Advanced technology for optimized protection

Guardian® Bird1st™ Etch pairs the visual deterrent of acid-etched glass on surface 1 with Guardian SunGuard® low-E coatings on surface 2. This allows you to expertly achieve energy performance and the bird-friendly standards your project requires – while also contributing to LEED Pilot Credit 55 qualification.

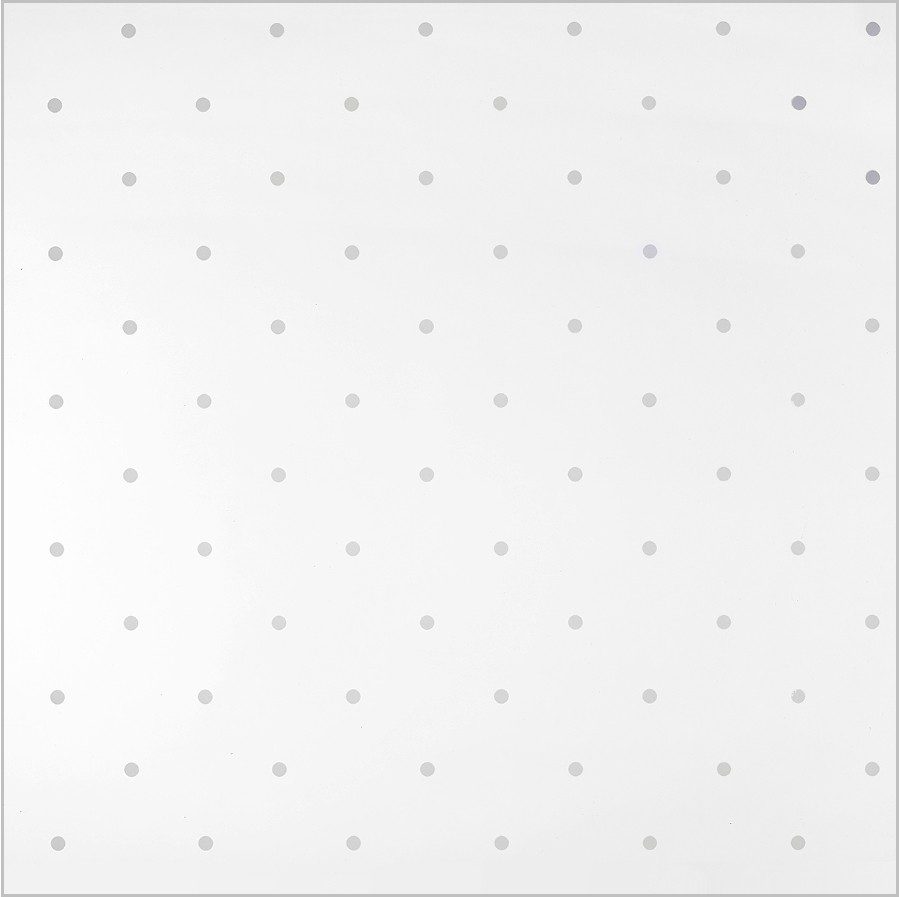

Bird1st Etch DX22

Threat Factor: 25
2" x 2" 5mm dots

Bird1st Etch product details and availability

  • Six patterns: Bird1st Etch LV, Etch LH, Etch DX22, Etch DV24, Etch SqX22 and Etch SqX24
  • Four SunGuard low-E coatings: SN 68, SNX 62/27, SNX 51/23 and SN 54
  • Four substrates: Guardian UltraClear™ low-iron glass, CrystalGray™ tinted glass, gray and standard clear glass
  • 96″ x 130″: Etch LV and LH patterns
  • 102″ x 130″, 102″ x 144″, 102″ x 204″ and 64″ x 204″: Etch DX22 , DV24, SqX22 and SqX24 patterns
  • Thickness: 6mm, 8mm and 10mm

Product information

Substrates
  • No data available
Applications
  • Windows
  • Facades
  • Curtain walls
  • Doors
Manufacturing Options
  • Must be Heat Treated
Recommended Coating Positions
  • Surface 1 (Etched); Surface 2 (Low-E Coating)
Maximum Size
  • <102"x204" (2591x5182mm)
Edge Deletion
  • No
Glass Type
  • Bird-friendly glass
Glass Functions
  • Selective visibility
Fabrication Options
  • Must be used in an Insulating Glass Unit
Appearance
  • Neutral
