Reduce the risk of glass breakage and related injuries
Safety glass refers to glass with additional safety features that make it less likely to pose a threat to the general public when broken. There are two types of safety glass: tempered glass and laminated glass tested in conformance with applicable standards are considered as safety glass.

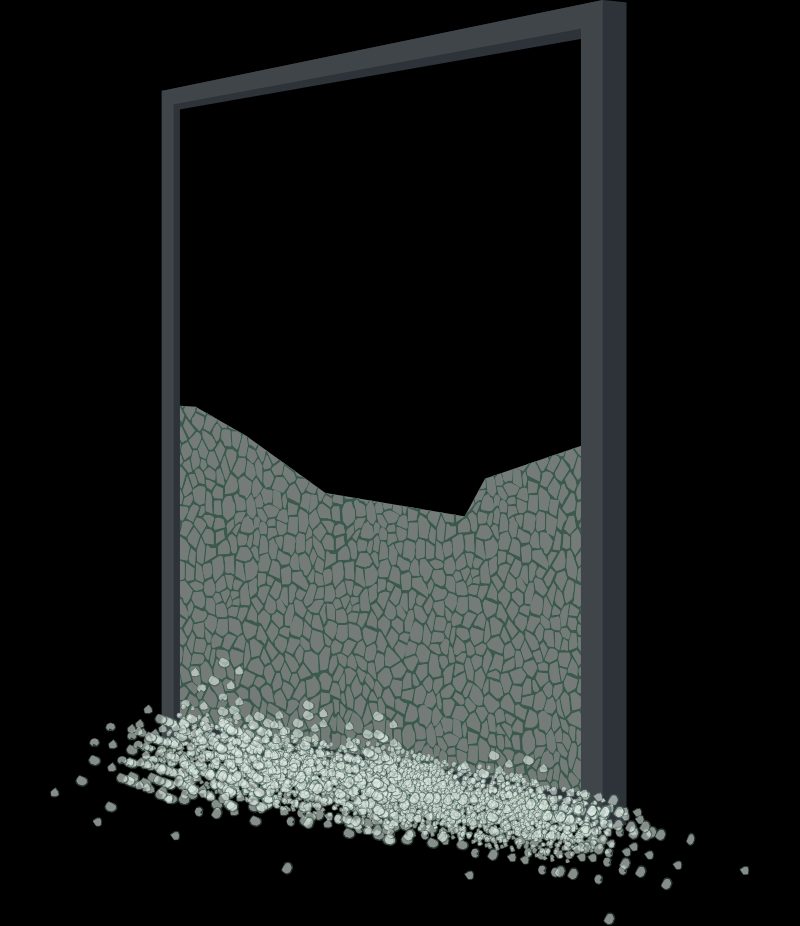

Tempered glass breaks into small pieces which reduces the potential injury from cutting or piercing a person impacting the glass. It is important to bear in mind that fragments of tempered glass tend to fall out of the frames once broken, creating a hole or opening in the building envelope that allows occupants to fall through the opening.

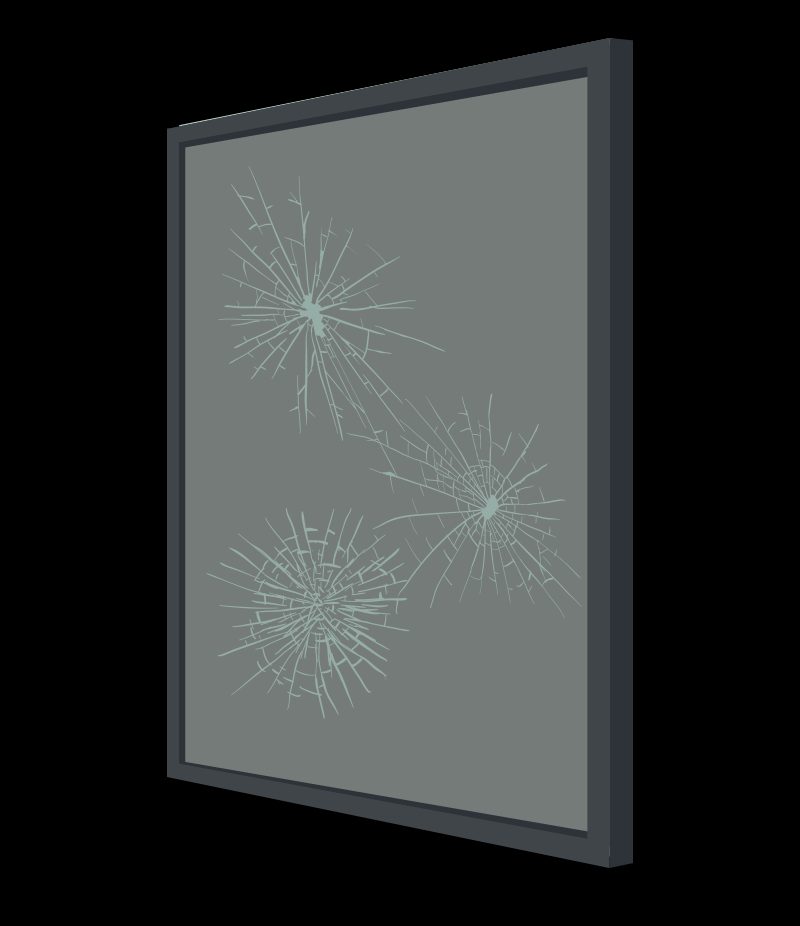

In contrast to safety features provided by tempered glass, fragments of laminated glass typically stay adhered to the interlayer and remain in the frames. This breakage characteristic of laminated glass contributes to human safety by protecting occupants from falling through the opening to the lower level and providing protection from dangerous flying or falling glass fragments.
The different breakage pattern between tempered glass and laminated glass plays an important role during glass selection for human safety protection.
You need to add solar control and/or thermal properties to the glazing? Guardian SunGuard™ solar control glass products for architectural applications can be tempered or laminated.

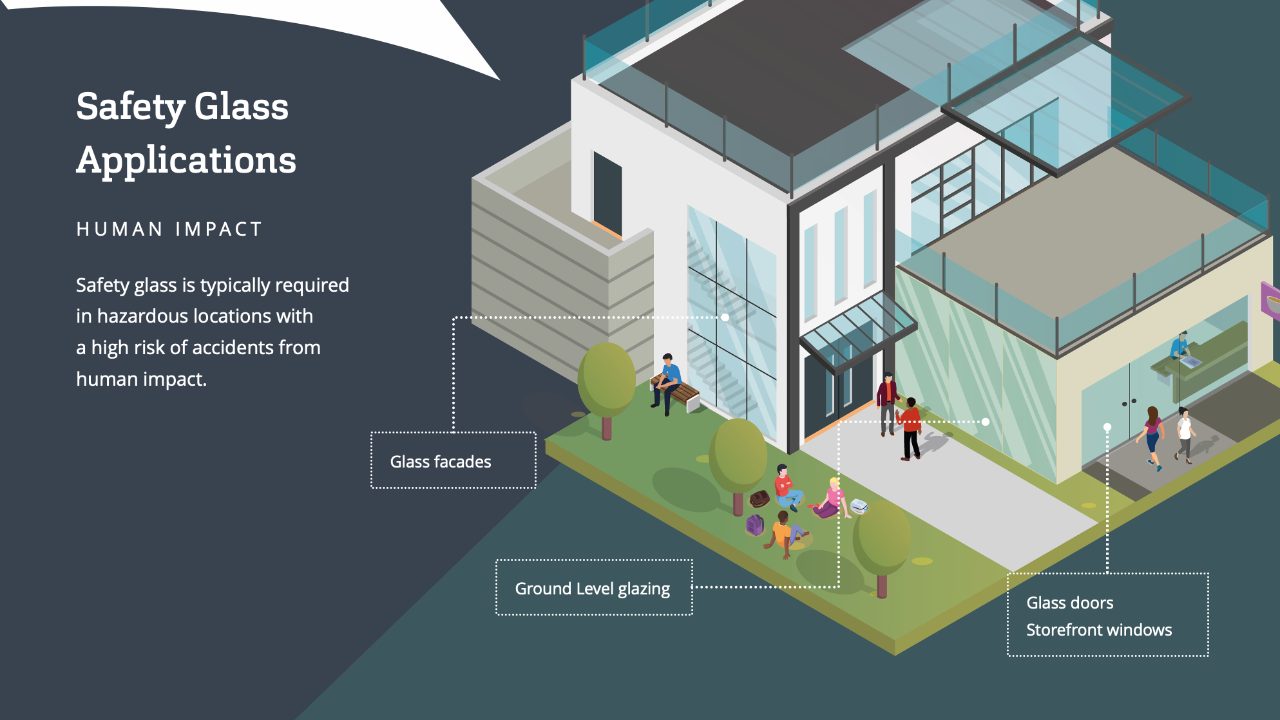

Safety glass is typically required in hazardous locations with a high risk of accidents from human impact. Typical applications are:
Overhead glazing such as skylights and sloped glazing located above walking areas should consist exclusively of laminated safety glass, with a minimum of 0.76 mm PVB for the lower pane. Design load requirements may even demand higher standards.

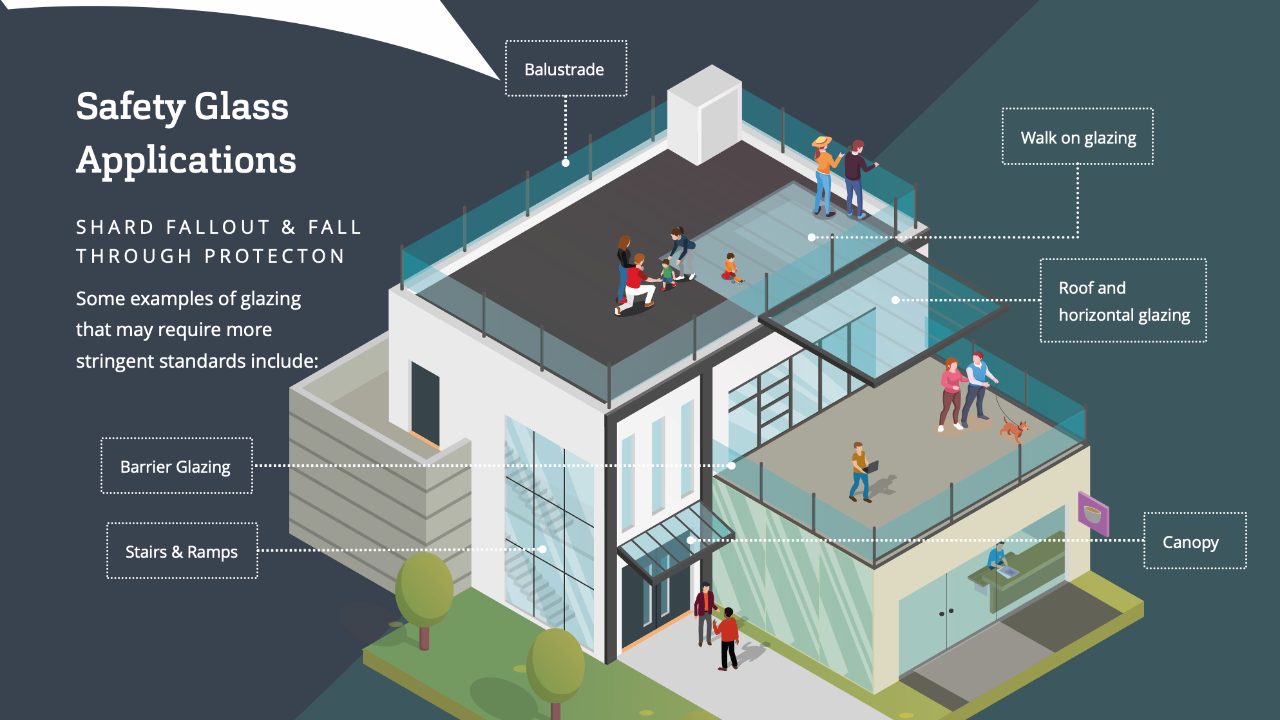

Some examples of glazing that may require more stringent standards include:

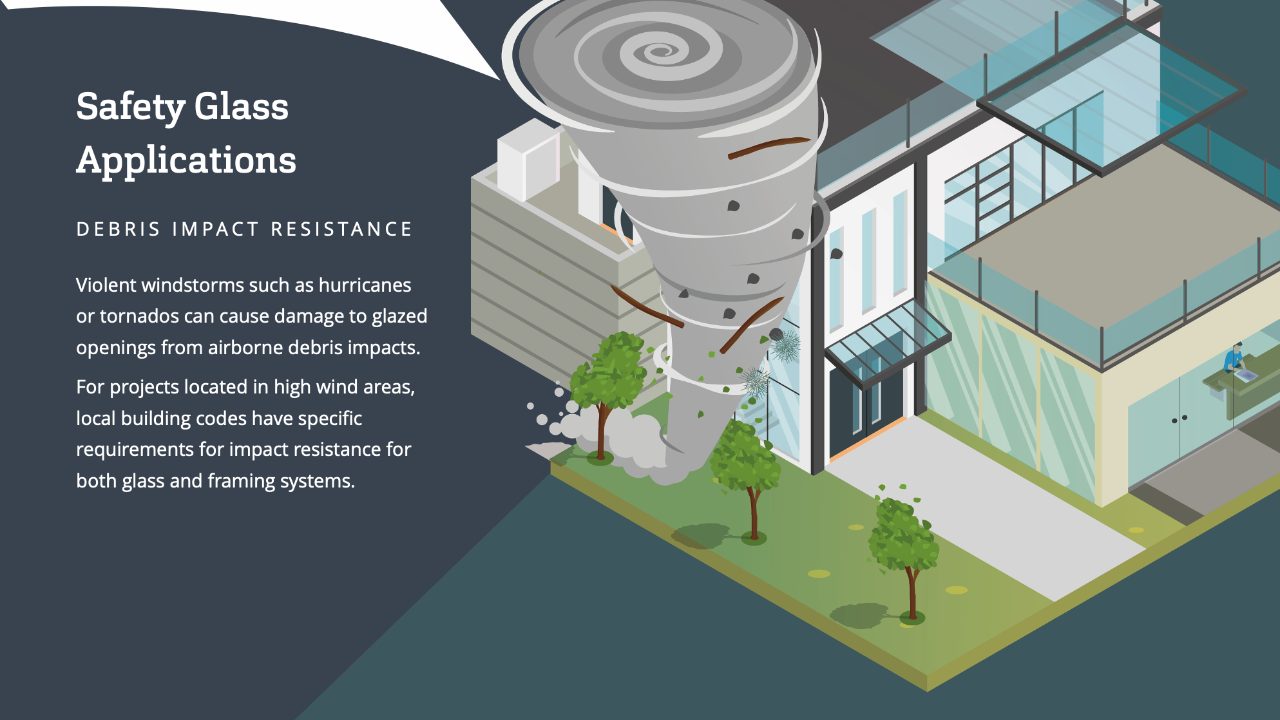

In addition to accidental impact, safety glass is recommended to minimize damage from natural causes. For example, violent windstorms such as hurricanes or tornados can cause damage to glazed openings from airborne debris impacts. For projects located in high wind areas, local building codes have specific requirements for impact resistance for both glass and framing systems.
“Understanding the final application and the combination of all the requirements is important when selecting which safety glazing option is the most appropriate. Although the type of glass chosen will vary depending on local building code standards and the specific requirements of the project, there are a number of potential options and combinations to consider with both tempered and laminated safety glass. Guardian Glass team of experts can recommend what safety glass is the most suited to your project through static calculations (glass thickness, tempered or laminated glass) and based on local regulations.”
Local building codes and regulations worldwide specify test methods for safety glass used for human impact safety protection. While these standards have some differences, they have similar test procedures to assess safety glass performance.

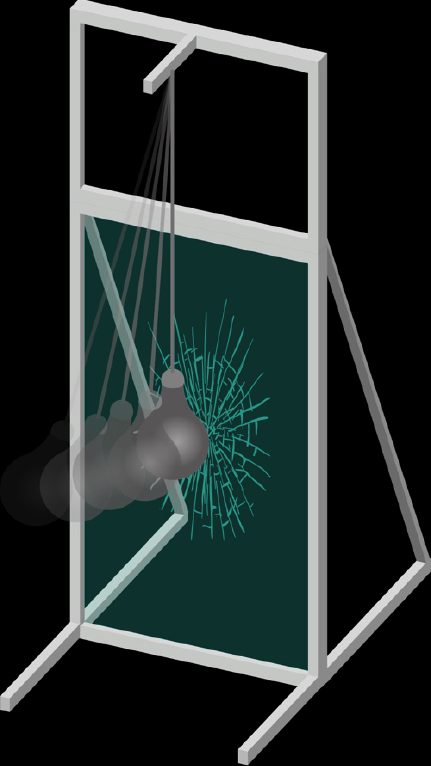

For safety glass, the codes stipulate a pendulum test to simulate glass subjected to human impact force. In general, the test involves impacting the glass sample with a specific weight that is dropped from a specific height. European standards use standard twin-tires while North American standards use a weighted bag to simulate a human body.
While both tempered glass and laminated glass are considered safety glass, the decision whether to use tempered glass or laminated glass is dictated by local building code requirements and safety criteria applicable for a specific project.
For more details on what results laminated and tempered glass should achieve at the pendulum test to be qualified as safety glass, view our training module on Safety and Security.
In the US, currently, safety glass is described in CPSC 16 CFR 1201 and/or ANSI Z97.1.
In Europe, currently the standard describing safety glass is EN 12600 – called, Pendulum test- Impact test method and classification for glass, to simulate the impact of a human body.
Other regions of the world may have different standards for safety glass.
In addition, North America has specific standards for debris impact resistance, which are ASTM E1886 and ASTM E1996.
Safety is defined as the condition of being protected from injury or loss due to accidents or natural causes. Some regions refer to this condition as passive safety.
Security is defined as the condition of being protected from injury or loss due to deliberate or intentional actions including burglary/forced entry, ballistics, and bomb-blast. Some regions refer to this condition as active safety.
