Guardian Bird1st UV
Guardian Bird1st UV
Protect Birds with clear results
Up to a billion birds die each year due to building collisions. Twice a year, migratory birds embark on a long, cross-continental flight. But their journey is often cut short. From hummingbirds to colorful warblers, bird populations are decreasing—and glass buildings are one reason why. Birds simply can’t tell the reflection of trees and sky in façades from the real thing. Guardian Bird1st UV glass is the clear answer for safer birds year round.
What humans see
Guardian Bird1st UV glass offers the right balance of solar performance, aesthetics and bird safety—so you can start designing your bird-friendly building through one trusted source. A patent-pending UV stripe coating on the first surface looks transparent in most viewing conditions2. Views remain pristine unlike traditional ceramic frit solutions, all while helping protect birds. Bird1st UV coated glass combined with a SunGuard® SN or SNX coating provides bird-strike protection and excellent solar performance.

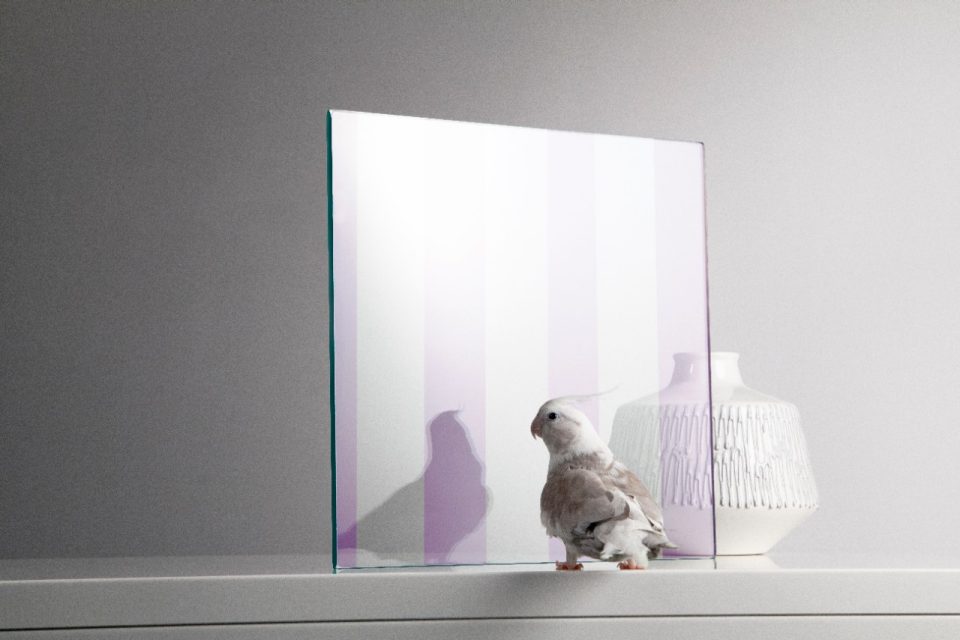

What birds see
The Guardian Bird1st UV stripe coating visually signals an impending barrier to birds and helps prevent collisions. With an acceptable Threat Factor3 score of ≤30 from the American Bird Conservancy, the product follows the 2x2 rule to account for different sizes and species of birds.
Product information
- Guardian UltraClear 6 mm. (1/4")
- Clear Float 6 mm. (1/4")
- Windows
- Facades
- Curtain walls
- Doors
- Must be Heat Treated
- Laminated
- Surface 1 (Single sided)
- <102"x144" (2591x3658mm)
- No
- Bird-friendly glass
- Selective visibility
- Must be Laminated
- Can be in an Insulating Glass Unit
- Neutral
The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.
- Default Performance Data
- Performance Calculations
-
Double Outboard
Double Outboard
GLASS: Guardian Clear Glass (North America) Glass, 1/4" (6mm) (1-Guardian Bird1st™ - UV)
INTERLAYER: PVB Clear 0.76mm (CE), 0.762mm
GLASS: Guardian Clear Glass (North America) Glass, 1/4" (6mm) (4-SunGuard® SN 68 (North America))
GAP: 10% Air, 90% Argon 12.7mm
GLASS: Guardian Clear Glass (North America) Glass, 1/4" (6mm)
Calculated Values are in accordance with NFRC2010
Performance Values
-
Monolithic
Not available for this product
-
Double
Not available for this product
-
Triple
Not available for this product
Monolithic
Monolithic Laminated
Double Glazed
Double Outer pane Laminated
Double Inner pane Laminated
Double Inner and Outer pane Laminated
Triple Glazed
Triple Outer pane Laminated
Triple Inner pane Laminated
Triple Inner and Outer pane Laminated
