ClimaGuard 55/27

ClimaGuard®

ClimaGuard 55/27

Download Brochure Generate BIM files Generate specification Find a Fabricator

Breathtaking views with no sacrifices

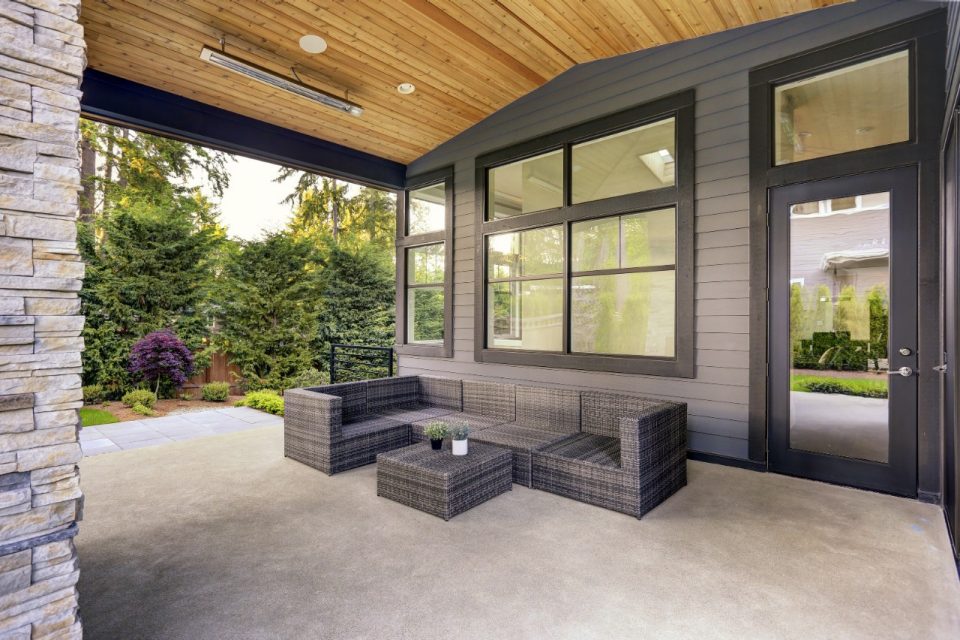

Expansive windows and sun-drenched rooms add beauty to any home—but they can also add heat and glare. ClimaGuard 55/27 coated residential glass is the energy-saving answer for waterfront and mountain-view homes, as well as homes in the West, Southwest and Gulf Coast. It blocks more solar heat than ordinary glass to keep interiors cooler, even on the hottest, sunniest days. It also minimizes glare without darkening rooms.

Product information

Substrates

Clear Float 2.3 mm (3/32") - 5 mm (13/64")

Applications

Windows
Skylights
Doors

Manufacturing Options

Heat Strengthened
Heat Soaked
Annealed
Tempered
Laminated

Recommended Coating Positions

Double glazed: #2 or #3 surface
Triple Glazed: #2 and/or #5 surface

Maximum Size

<100"x144" (2540x3658mm)

Edge Deletion

Glass Type

Low E

Glass Functions

U-Value Benefit

Fabrications

Must be used in an Insulating Glass Units

Appearances

Neutral

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. Please see color disclaimer at bottom of the page.

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Double Glazed
Triple Glazed

Double Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 55/27 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

56 %

Reflectance outside (ρv)

17 %

Reflectance inside (ρv)

20 %

General Color Rendering Index (CRI)

96.4

Ultraviolet

Transmittance UV (τuv)

21 %

Solar Energy

Solar transmittance (τe)

25 %

Reflectance outside (ρe)

44 %

Reflectance inside (ρe)

47 %

Solar absorptance (αe)

31 %

Solar Heat Gain Coefficient (SHGC)

0.28

Shading Coefficient (sc)

0.32

Thermal properties

Winter night U-Value

0.245 Btu/hr·ft²·F

Summer day U-value

0.217 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.01

Triple Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 55/27 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

51 %

Reflectance outside (ρv)

20 %

Reflectance inside (ρv)

25 %

General Color Rendering Index (CRI)

95.4

Ultraviolet

Transmittance UV (τuv)

18 %

Solar Energy

Solar transmittance (τe)

23 %

Reflectance outside (ρe)

45 %

Reflectance inside (ρe)

43 %

Solar absorptance (αe)

32 %

Solar Heat Gain Coefficient (SHGC)

0.26

Shading Coefficient (sc)

0.29

Thermal properties

Winter night U-Value

0.184 Btu/hr·ft²·F

Summer day U-value

0.178 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.00
