Balanced performance across climates

Guardian ClimaGuard 62/27 glass delivers the balanced solar control and visible light transmission needed to help provide year-round comfort, control heat and glare, and manage energy costs in almost any climate. An outstanding product to standardize on, ClimaGuard 62/27 glass is also available in a version that can be embedded in a laminated application to help enhance hurricane resistance in southern coastal regions.

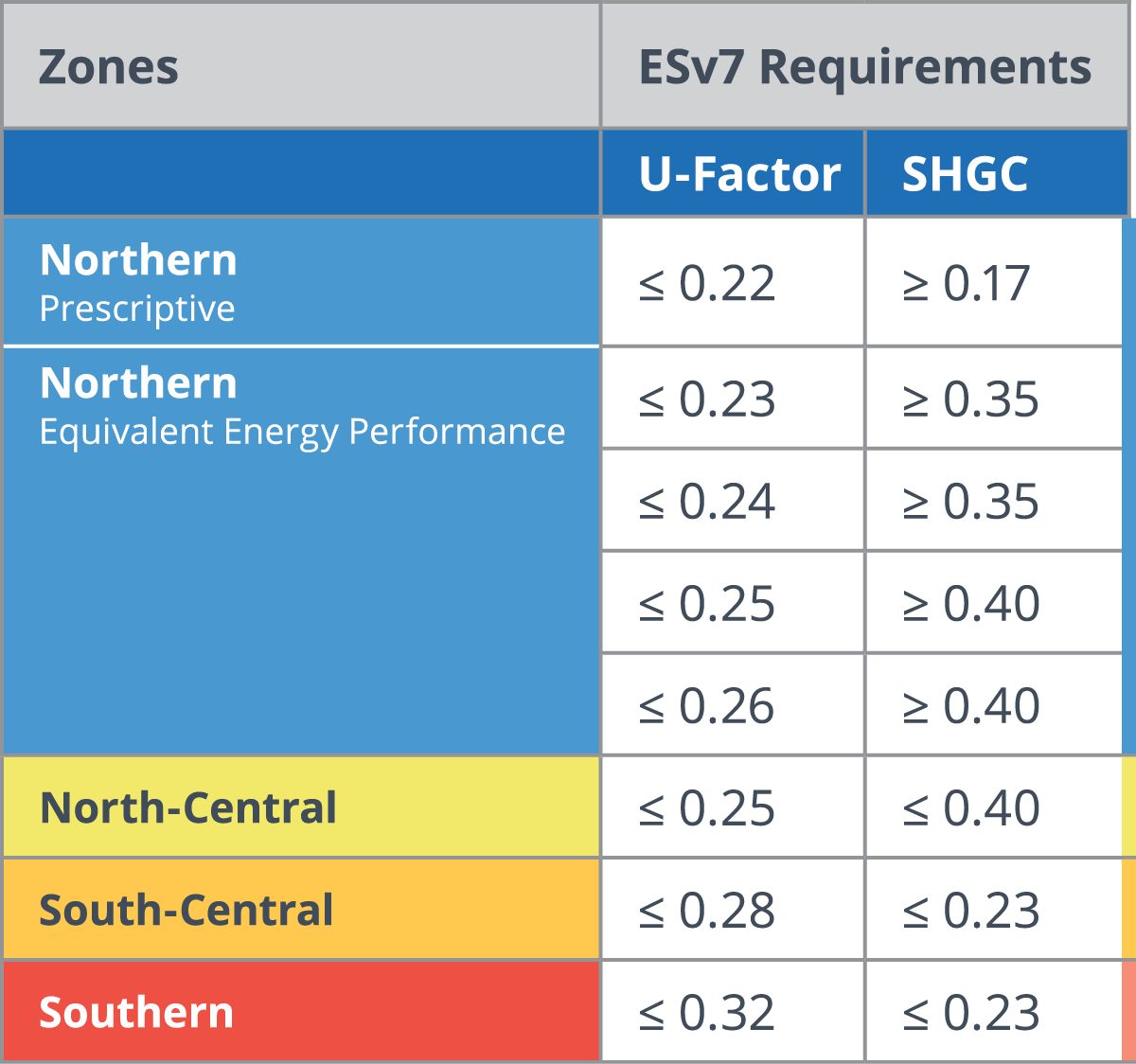

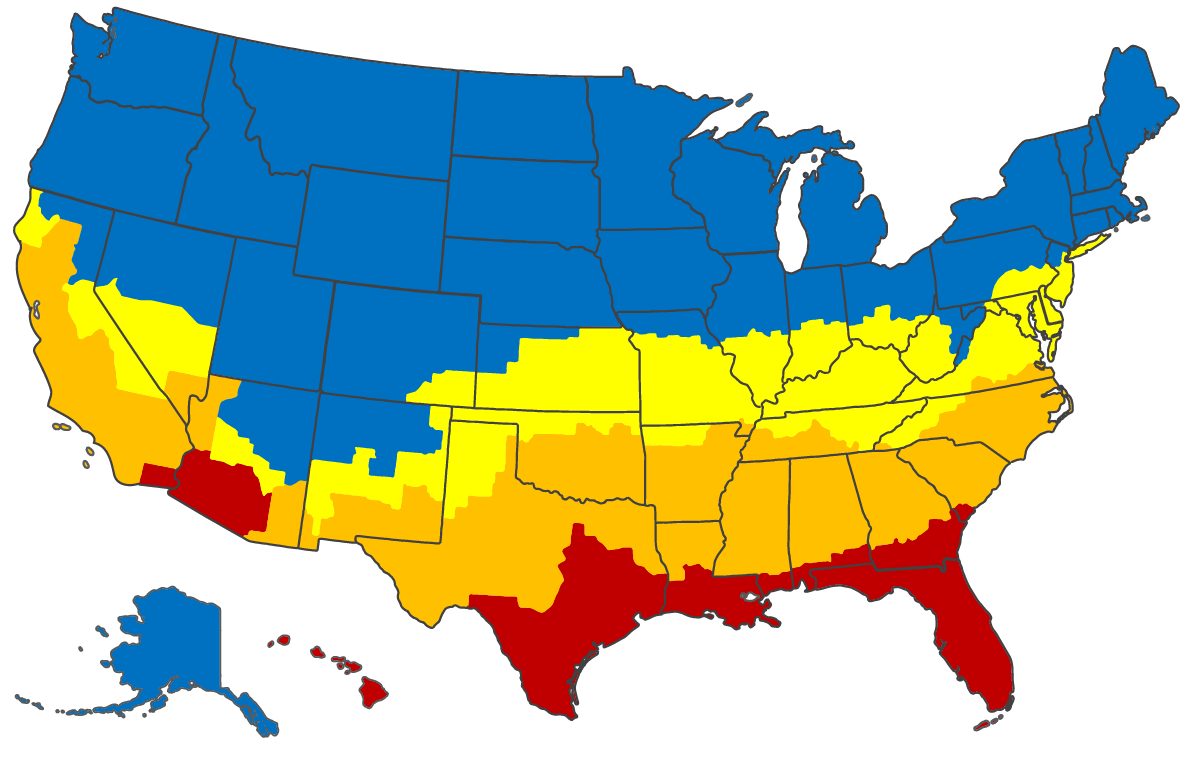

ENERGY STAR® prescribes a set of NFRC-certified U-Factor and solar heat gain (SHGC) rating levels for windows that meet its performance criteria across U.S. climate zones. It also defines a set of “equivalent enery performance” criteria specifically for windows that may be similarly certified for the Northern Climate Zone.

Center-of-glass performance calculated according to NFRC-100 based on an energy efficient frame with argon fill and warm edge spacer (IS 20 interior surface coating), and dual pane glass thickness of 3 mm and triple pane of 2.3 mm.

Product information

Substrates

Clear Float 2.3 mm (3/32") - 5 mm (13/64")

Applications

Windows
Skylights
Doors

Manufacturing Options

Heat Strengthened
Heat Soaked
Annealed
Tempered
Laminated

Recommended Coating Positions

Double glazed: #2 or #3 surface
Triple Glazed: #2 and/or #5 surface

Maximum Size

<100"x144" (2540x3658mm)

Edge Deletion

Glass Type

Low E

Glass Functions

Solar control
Thermal insulation

Fabrication Options

Must be used in an Insulating Glass Unit

Appearance

Neutral

Choose an option

Substrate

There is only one substrate available for this product

View

Left sky conditions

Right sky conditions

This tool intended to represent the reflected/transmitted color ; however, glass color cannot be accurately portrayed online. For more information, launch the Glass Visualizer.

Calculate Performance Values & Generate BIM Files

Generate product performance data for custom glass make-ups and create detailed BIM object files for your project

Calculate

Performance data

The glazing make-up suggestions below are pre-defined to provide examples of commonly used combinations of products. There are many other glass combinations available at Glass Analytics.

Default Performance Data
Performance Calculations

Double Glazed
Triple Glazed

Double Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 62/27 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

61 %

Reflectance outside (ρv)

12 %

Reflectance inside (ρv)

14 %

General Color Rendering Index (CRI)

92.3

Ultraviolet

Transmittance UV (τuv)

7 %

Solar Energy

Solar transmittance (τe)

23 %

Reflectance outside (ρe)

45 %

Reflectance inside (ρe)

50 %

Solar absorptance (αe)

32 %

Solar Heat Gain Coefficient (SHGC)

0.26

Shading Coefficient (sc)

0.29

Thermal properties

Winter night U-Value

0.241 Btu/hr·ft²·F

Summer day U-value

0.212 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.39

Triple Glazed

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm) (2-ClimaGuard® 62/27 (North America))

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

GAP: 10% Air, 90% Argon 12.7mm

GLASS: Guardian Clear Glass (North America) Glass, 1/8" (3mm)

Calculated Values are in accordance with NFRC2010

Performance Values

Visible Light

Transmittance (τv)

56 %

Reflectance outside (ρv)

15 %

Reflectance inside (ρv)

20 %

General Color Rendering Index (CRI)

91.6

Ultraviolet

Transmittance UV (τuv)

6 %

Solar Energy

Solar transmittance (τe)

21 %

Reflectance outside (ρe)

46 %

Reflectance inside (ρe)

46 %

Solar absorptance (αe)

33 %

Solar Heat Gain Coefficient (SHGC)

0.24

Shading Coefficient (sc)

0.27

Thermal properties

Winter night U-Value

0.182 Btu/hr·ft²·F

Summer day U-value

0.175 Btu/hr·ft²·F

Light to Solar Gain

Light to Solar Gain (LSG)

2.37
